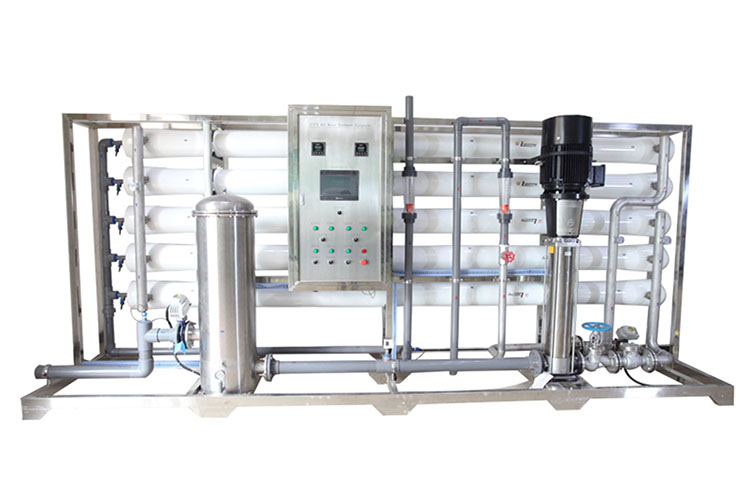

20ft Containerized 20T/H RO Water Treatment System/ DOW FILMTEC BW30-400IG Membrane Water Purification Plant
We don't produce water, we only treat water
Industrial water filter, the raw water is underground water, first goes by pre-treatment, then by RO treatment. Through those treatments, can remove dissolving salt 99% and harmful materials, like particle, colloid, organic impurities, heavy metal ions, bacteria, viruses and heat source, etc. the system salt rejection rate gets 96-98%, outlet water conductivity gets ≤10μs/cm².
RO (Reverse Osmosis) Water Purification Treatment : The capacity ranges: from 1500GPD (0.25t/h) to 3,000,000 GPD (500t/h). Reverse osmosis (RO) technology known as hyper filtration, is widely used in Cosmetic, Pharmaceutical, chemical industries, food, drinking water. RO equipment is the most advance and energy saving in water treatment industry.
Parameters:
20000LPH=20TPH RO Water Purification Plant: * Application Scope: TDS≤2000mg/L(design as per your raw water condition)
* Output Water Quality: TDS≤60mg/L.
* Capacity: 20m3/hour
* Meet the "World Health Organization (WHO) Standard"
* Recovery Rate: 60%~80%
* Desalination rate:97%-99%
* Adapted Seawater Temperature: 5.0~39°C
* Water desalination plants of different capacity ranges from 1T/D to 10000T/D
--Operation pressure: 4.5 ~ 6.0 Mpa, desalination rate: 97~ 99% --Highly automation, stable operation, low fault rate and low operating cost --Apply to electronic, chemical, electric power, pharmaceutical and other industries of water preparation
Application
| Electronics Industry | Silicon,micro-electronics products with high water. Semiconductors,tubes and other manufacturing industries with high water. The using of production water batteries in lithium batteries, solar power batteries, dry cell batteries. |
| Food and Beverage field | Pure water, distilled water, mineralized water, natural water,mineral water. The using of production water in liquor blending and beer production. The using of pure water in food and beverage production. The supply of drinking water for hotels, building and uptown. |
| Phamaceutical industry | Pharmaceutical, injection with pure water, high pure water and sterile water,etc. Purification and separation of drug raw materials. Medical hemodialysis, biochemical analysis and water for injection. |
| Cosmetics | The using of pure water in the production of skincare, shampoo,toothpaste and other cleaning fluid. |
| Chemistry and Chemical Engineering | The using of pure water in the production of chemical reagent, chemical fertilizers and paper making. |
| Surface Treatment: | The using of highly pure water in electroplating and glass coated. Ultrasonic cleaning with pure water. The surface coating and cleaning automotive,appliance, building material products with pure water. |
Process flow
Raw water tank(buyer supply)→raw water pump → quartz filter → activated carbon filter → (softener) → security filter → high pressure pump → reverse osmosis system → pure water tank(buyer supply)→ water point
1. The reverse osmosis forward water temperature is about 25 ± 2 °C.

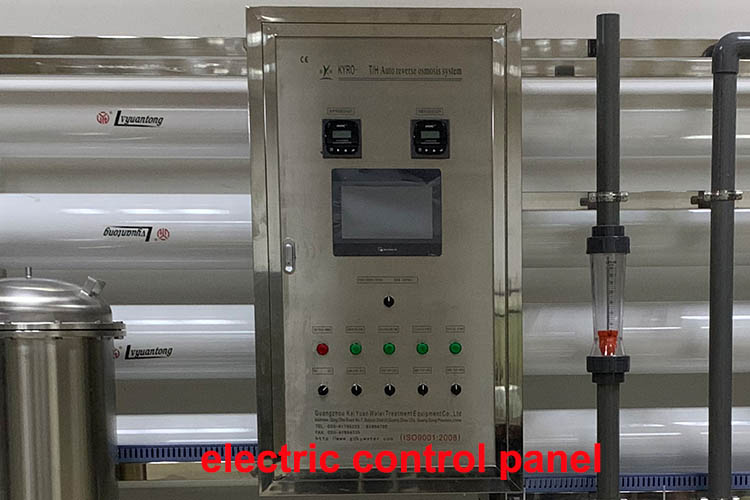

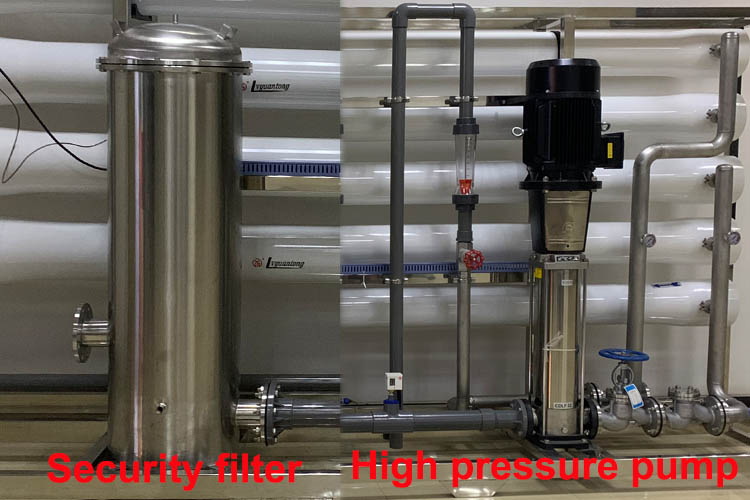

2. Reverse osmosis system includes: security filter, high pressure pump, reverse osmosis membrane group, control instrument, etc.
3. The water treatment system of this project is based on the RO desalination system. The quartz filter, activated carbon filter and security filter are pre-processed to ensure the normal operation of the ro system.
4. Process characteristics: Compared with traditional ion exchange demineralization, reverse osmosis desalination has the advantages of long-term stable operation, high reliability, high processing precision, long operating cycle and low operating cost.
Thank you so much for your value time.Any questions please click "contact now" send us inquiry !
We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13660858152
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
