Factory Direct Sale 1000LPH Ro System Purifier Water Pure Plant Membrane Machine environmental Industry Reverse Osmosis
⇒Change dirty water into pure water!
Our main product is RO system water purifier machine what we can do is to help changing such as seawater, brackish water,underground water and tap water atc... into domestic water, irrigation, direct drinking or bottle drinking(pure/mineral/alkaline water), industrial water: boiler water, hospital usages, beverage usages atc...
Reverse osmosis system is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt. The whole system desalination rate can reach 96%-99% to make permeated water conductivity<10 us/cm. Dense water also won’t polluted environment. Reverse osmosis equipment no need to consider about input water quality too much. And the main features of RO equipment is no need to do any regeneration, it can be keep stable for long time.
| Feed water(source water): City water, river water, lake water, underground water(borehole, well), brackish water, sea water...... |
| Treated water: 1. Electronic industry: Pre-filter for ultra pure water, chemical products and pure water 2. Food and beverage industry: filter for mineral water, wines and fruit juice 3. Medicine industry: filter for drug liquid, gases 4. Chemical industry: filter for organic solvent 5. Petroleum industry: filter for oil-field flooding |
Process
raw water tank(buyer provided)→ raw water pump→quartz sand filter →activated carbon filter→softener(optional)→security filter→high pressure pump→ro system→pure water tank(buyer provided)+UV sterilizer(ozone generator) +water supply point

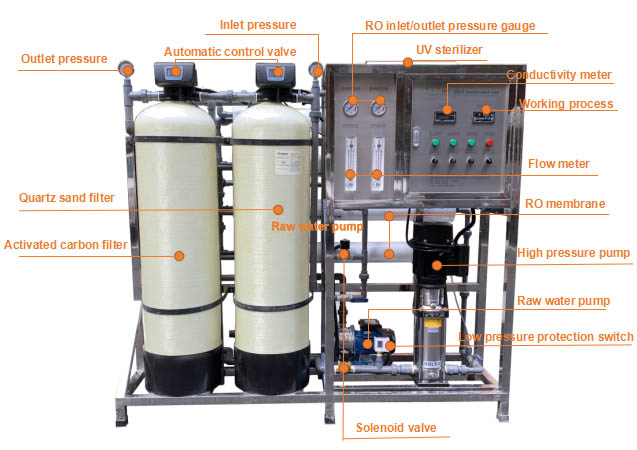

Main parts function
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter/softener.
2. Multi-medium filter--get rid of turbidity, suspended matter, organic matter, colloid, etc.
3. Active Carbon filter--Remove the color, smell, free chloride, organic matter, harmful matter, etc.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump--Provide the high pressure to RO membrane.
7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.
Thank you so much for your value time.Any questions please click "contact now" send us inquiry !
We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13660858152
Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
